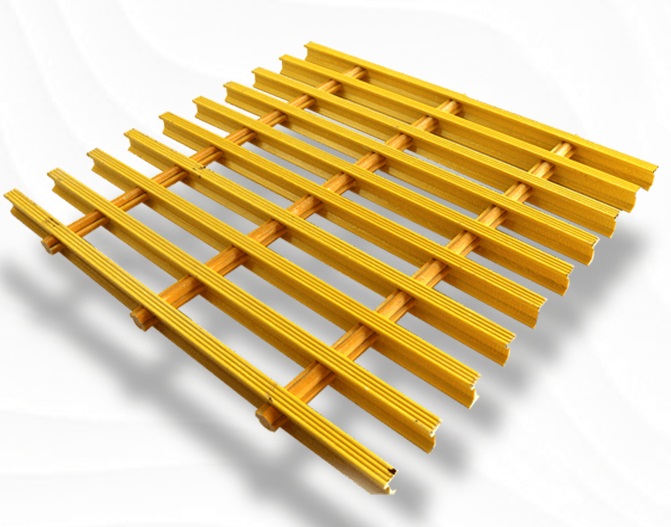

FRP Pultruded Grating

Home

When high demands of non-slip, such as in oil deck, stair treads, the sand cover are necessary are used in maintaining plants or machines to keep the tools from falling. The standard panel size 1220 * 3600 mm or customized with ending cover or not.

Frp Pultruded Grating
Frp Moulded Grating
2. Technical parameters


Properties Unit Test standard Requirements according to E23 standard
Lengthwise tensile modulus Gpa EN IS0527 23
Lengthwise tensile strength Mpa EN ISO 527 240
Transverse tensile strength Mpa EN ISO 527 50
Transverse tensile modulus Gpa EN ISO 527 7
Lengthwise flexural strength Mpa EN ISO 14125 240
Transverse flexural strength Mpa EN ISO 14125 100
Interlaminar shear strength Mpa EN ISO 14130 25
3. Advantages
  • Light weight, high strength
  • Corrosion resistant
  • Lower life maintenance cost
  • Easy fabrication
  • Non-conductive
  • Low thermal conductivity
  • UV resistance

All Dimension Size

SIZE

H-height W-Top Width C-Spacing Open Area
1-1040 25 15 25 40%
1-1050 25 15 30 50%
1-1060 25 15 38 60%
1-1540 38 15 25 40%
1-1550 38 15 30 50%
1-1560 38 15 38 60%

All dimension in mm
For customized Size and Loading Chart please contact us

Industry

Chemical | Food & Beverage | Marine | Oil & Gas | Power | Industry | Building | Construction | Pharmaceuticals | pulp & Paper | Recration | water & Waste Treatment | Shipping | Transportation | Architecttural | Telecommunications |

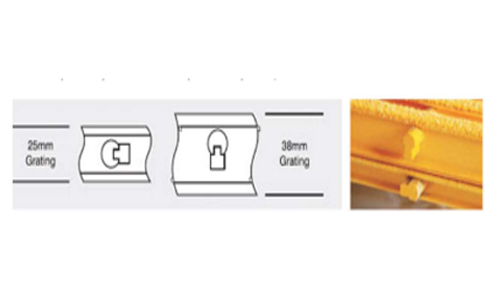

Bearing Bar and Cross Rod Assembiles

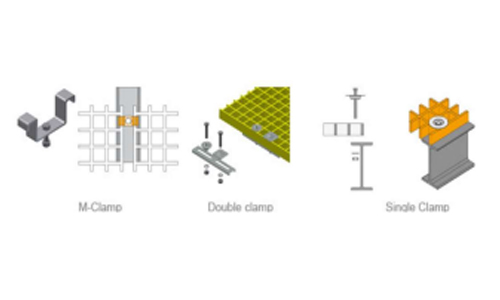

Fixing Sets
